OB Van 2
Ana Görsel

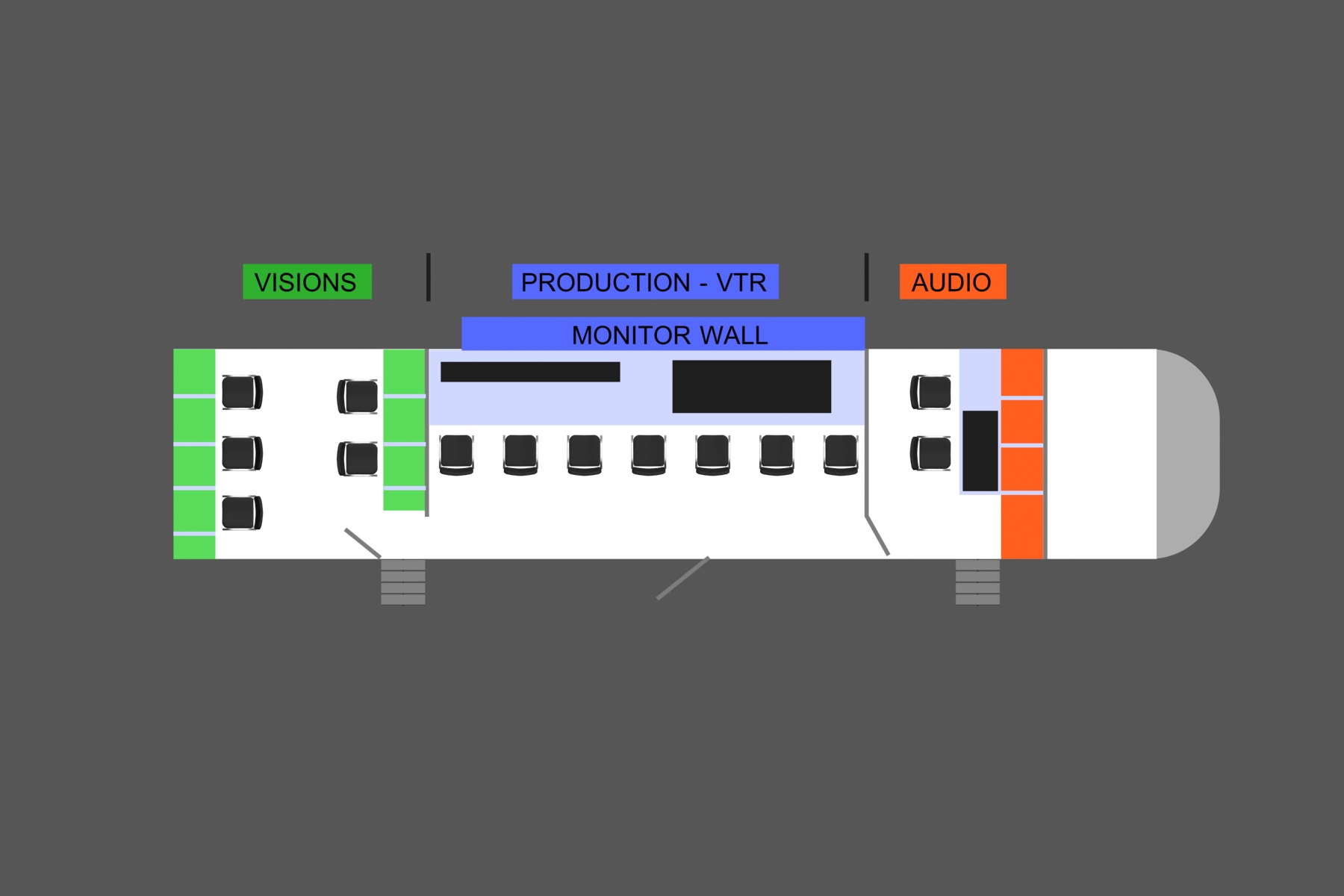

Araç Planı

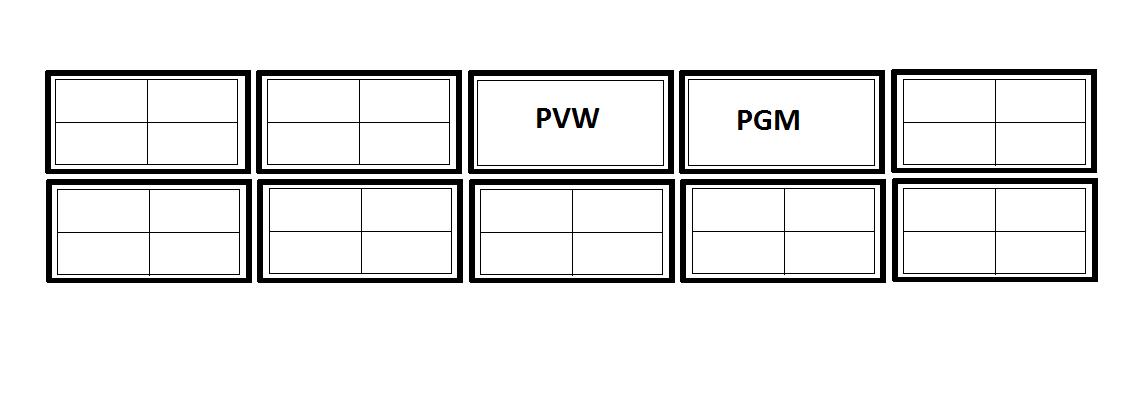

Monitör Planı
NEV OB2 HD-SD / SDI
EKİPMAN LİSTESİ
GENEL

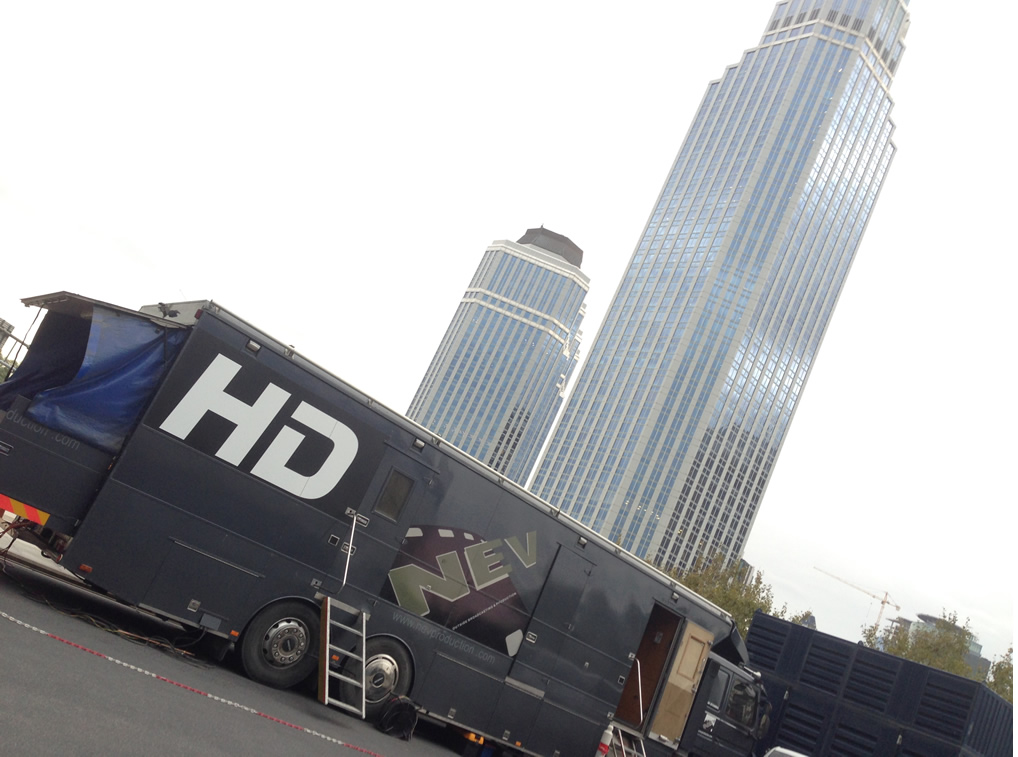

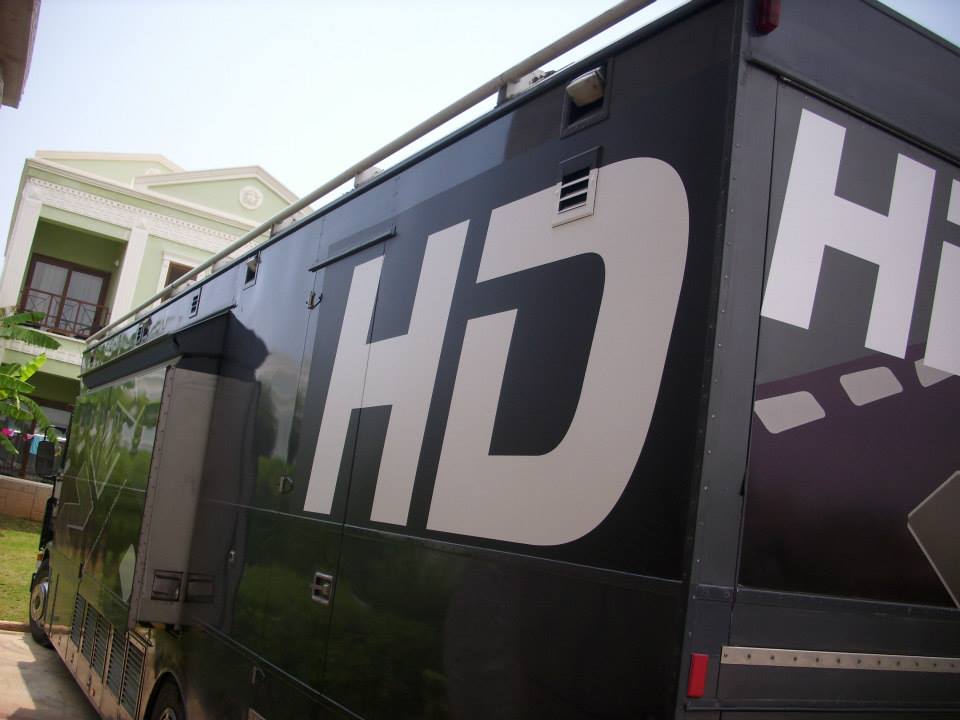

Kamyon : Scania 143M ( 400 Hp / V8 Motor )
Ölçüler : U12.45 x Y3.65x G 2.50 (2.90 with Expander )
Toplam Ağırlğı : 26 Ton
Coachbulding: A Smiths Great Bentley UKreat
Elektirik : 63 Amp. 5p CEE, 3-Phase, 3x380 V
Ups : 3 x 6 Kva
Klima Sistemi: 5 Adet Kanal Tipi
Çalışma Alanları: 3 Bölmeli.( Prodüksiyon - Kamera Kontrol- Ses )
PRODÜKSİYON

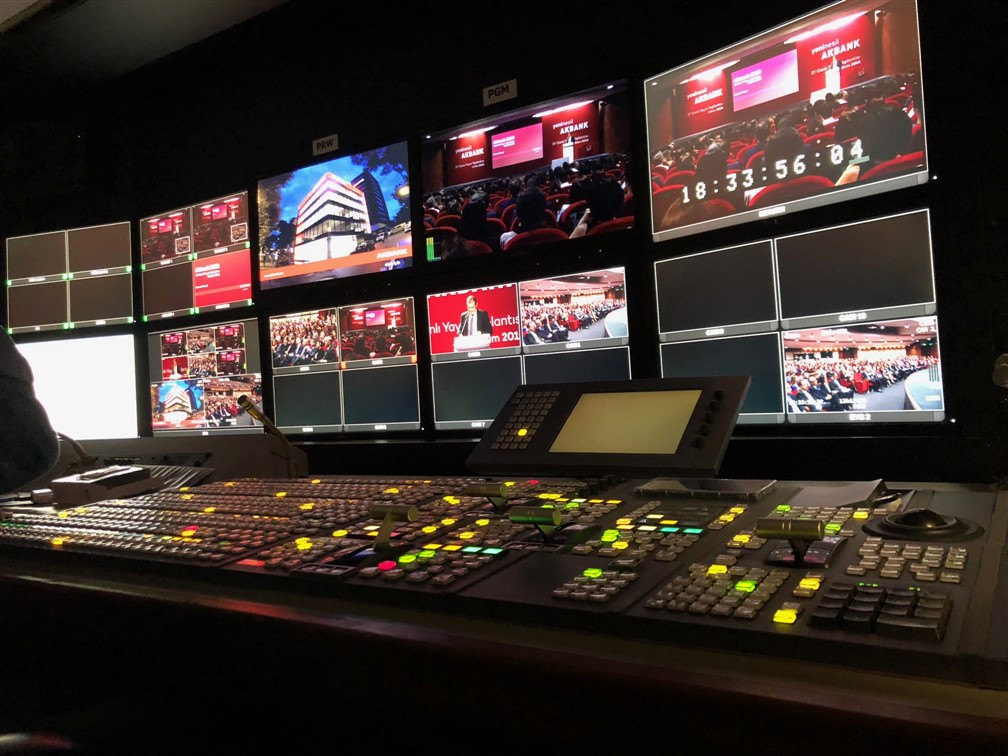

Video Mixer
Sony MVS-8000GSF Multi Format Video Switcher HD /SD
PP + 2ME ( 2.5 ME )
34 Giriş
24 Çıkış
Aux Buses
Frame Memory Board
4 Kanal DVE her ME Bus İçin

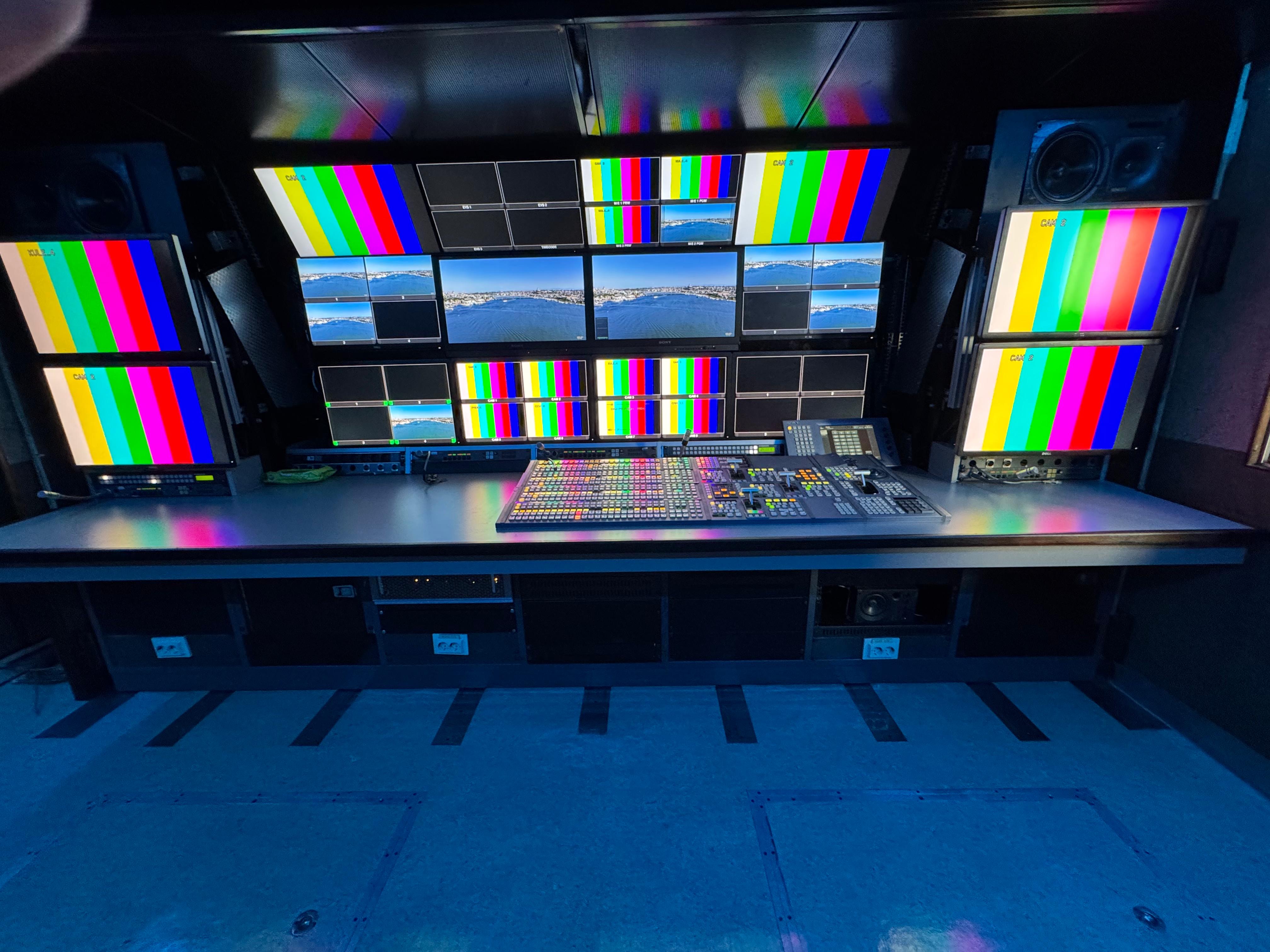

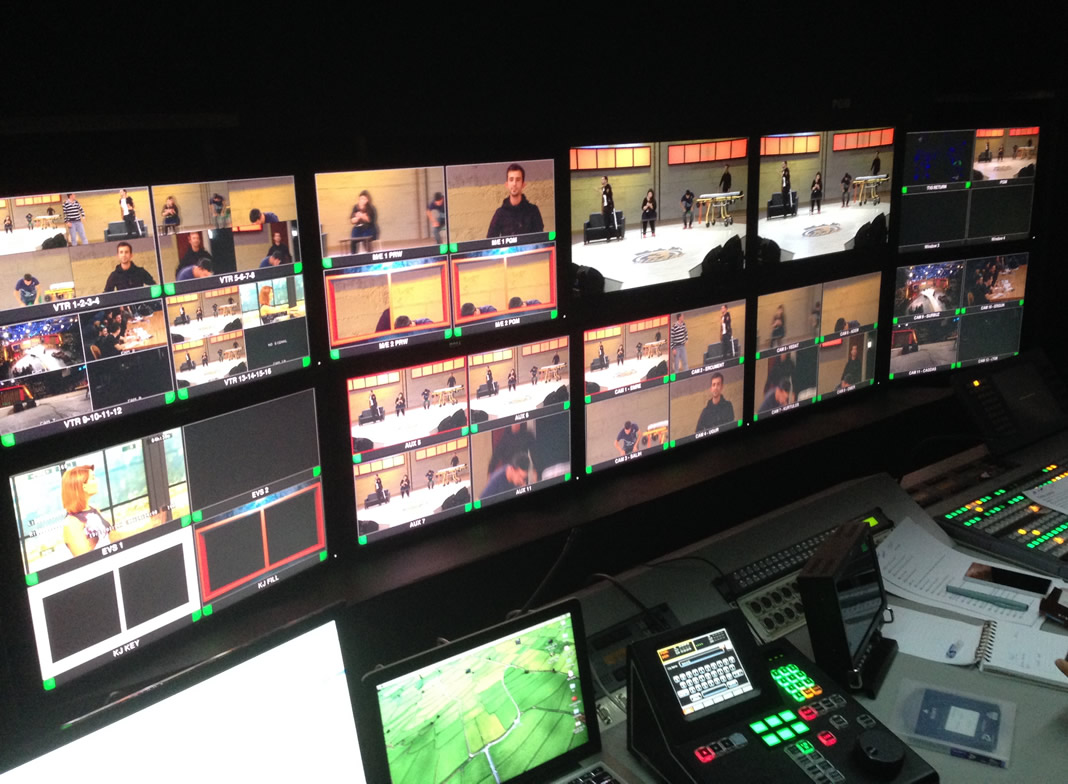

Monitör
02 x Sony PMV-A250 25 inç TRIMASTER EL OLED PGM/ PVW Monitörü
13 x 24 inç HD Quad Led Monitör
02 x Genelec 1031A Audio Monitor
Axon Synape Multiview Systems
GRAFİK
Playbox Titlebox HD CG

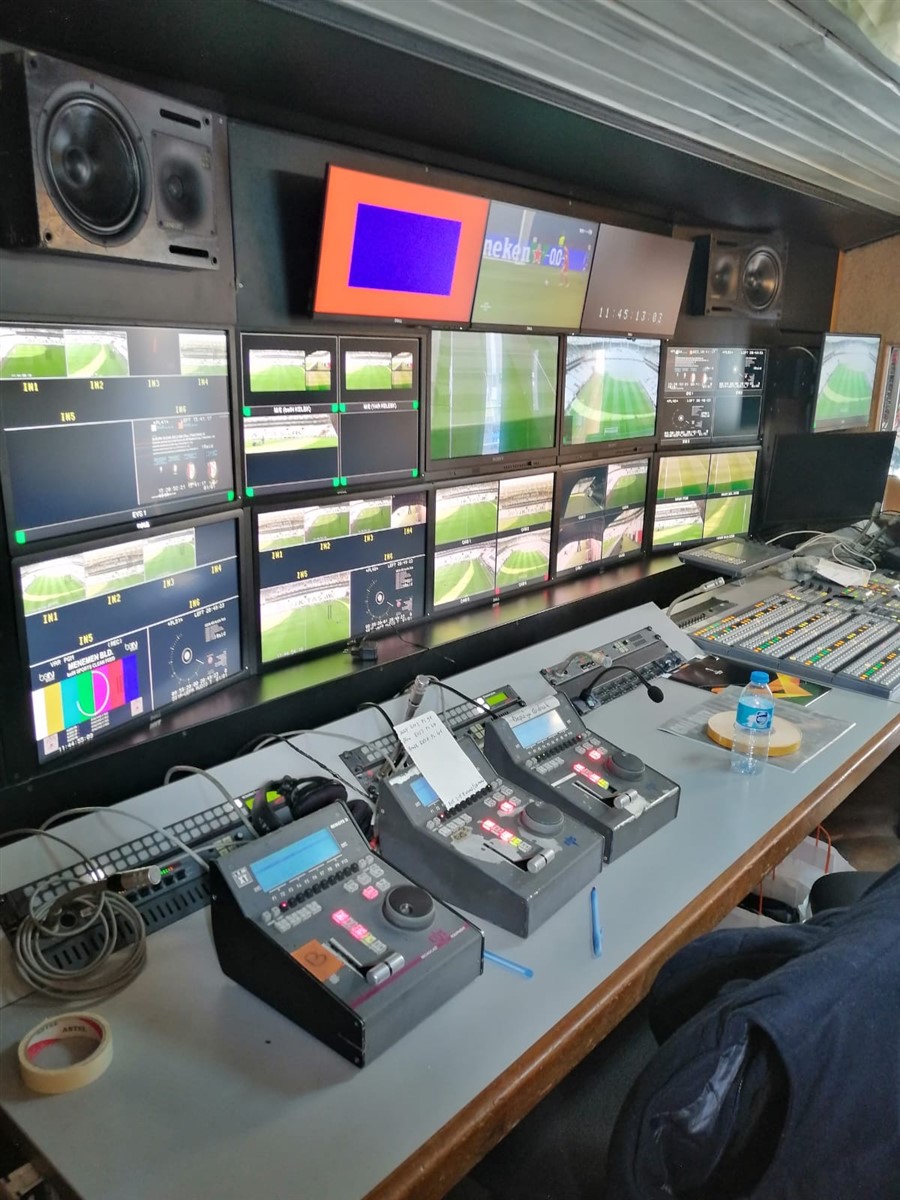

VİDEO – KAMERA KONTROL

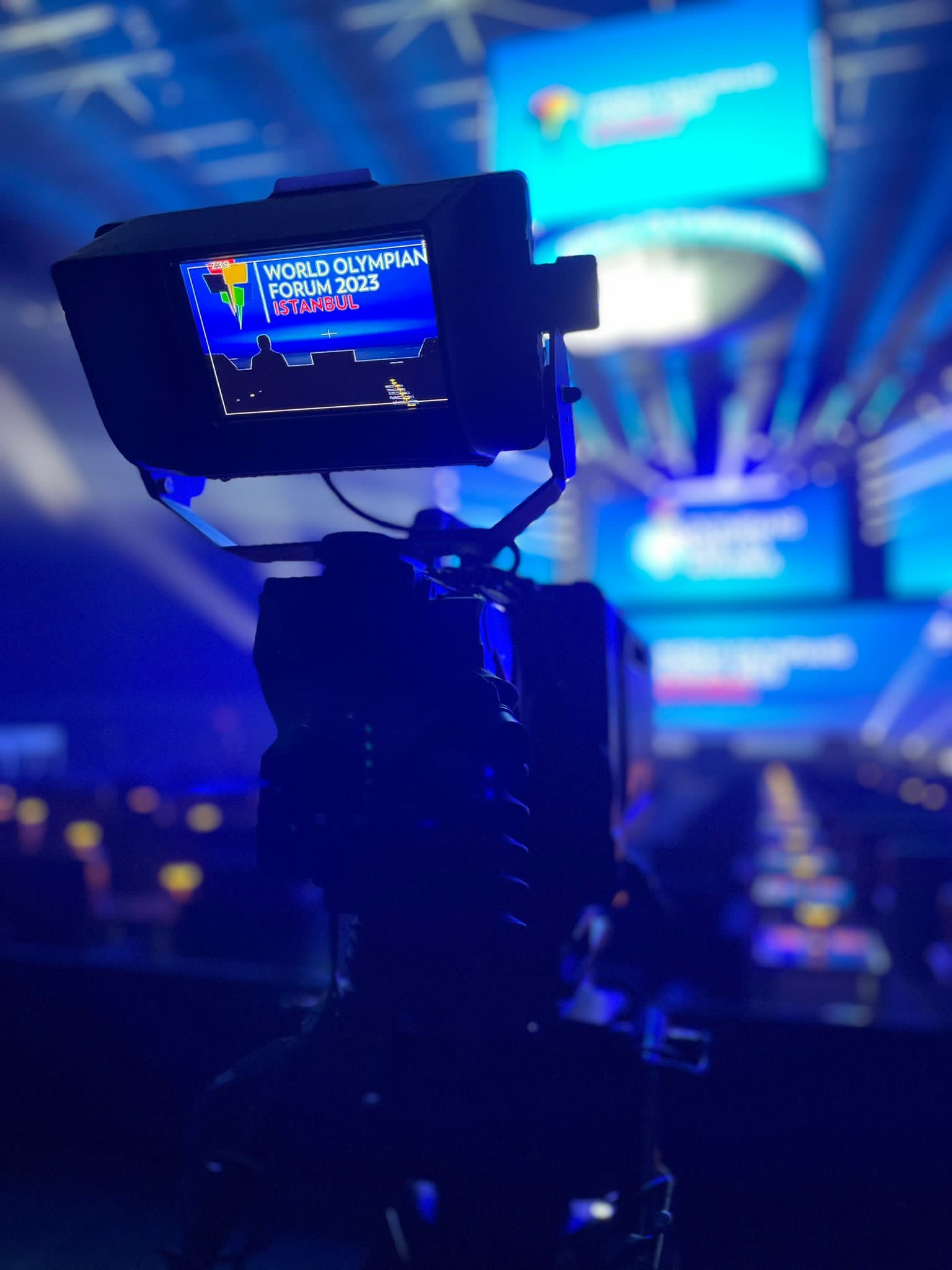

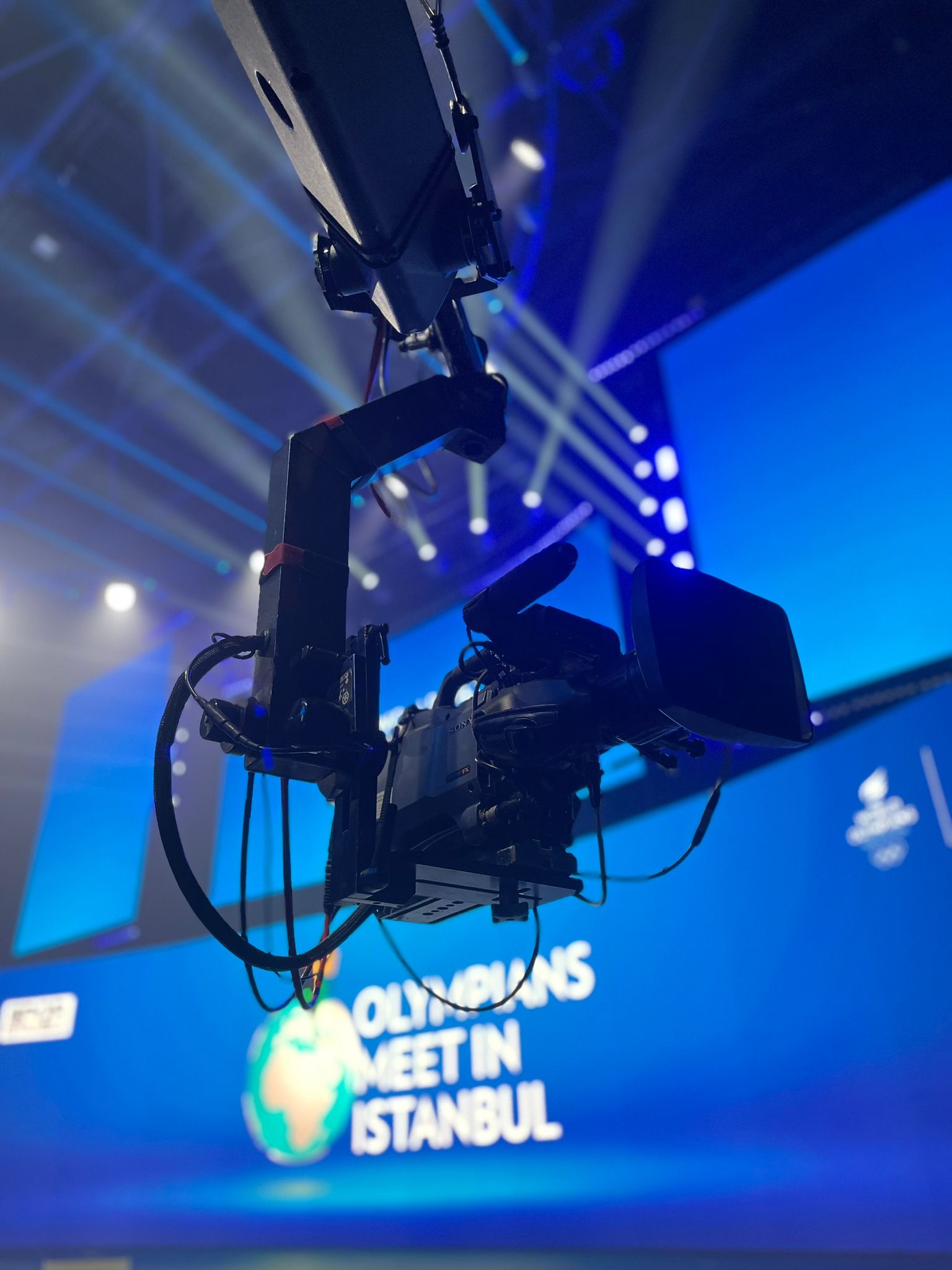

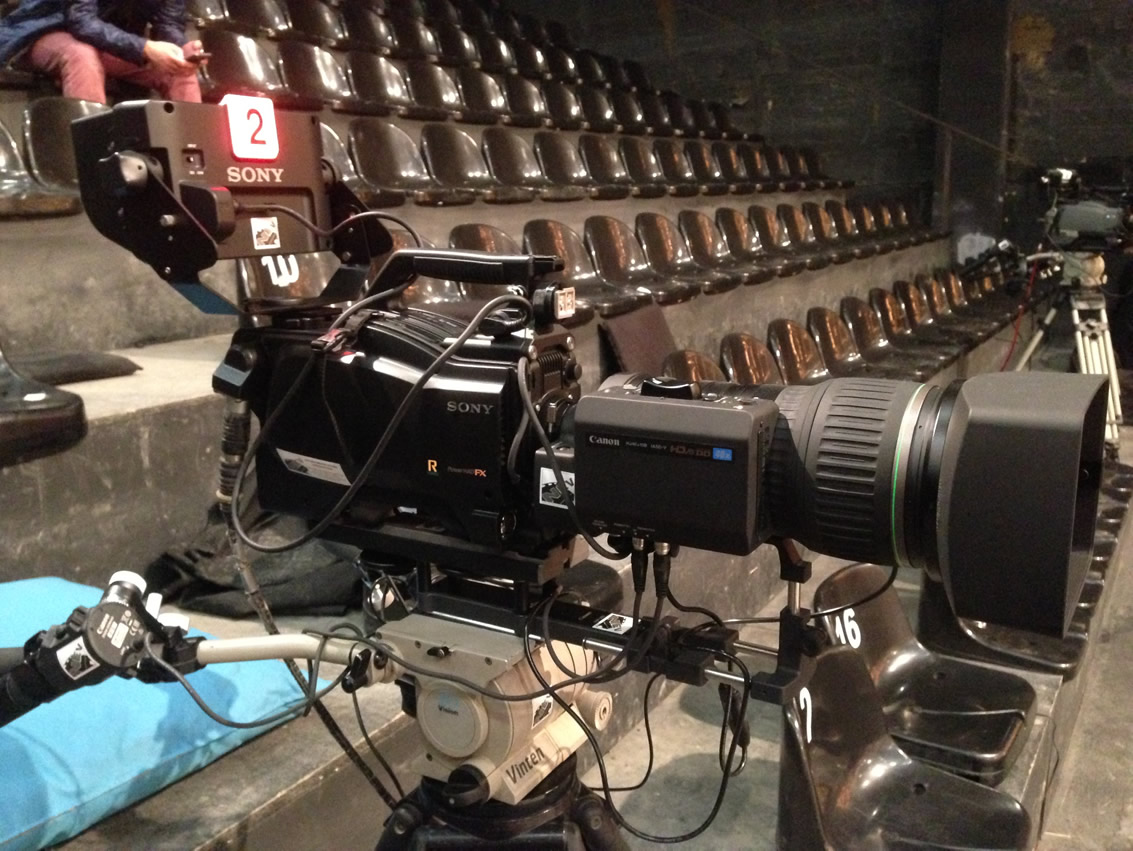

Kamera

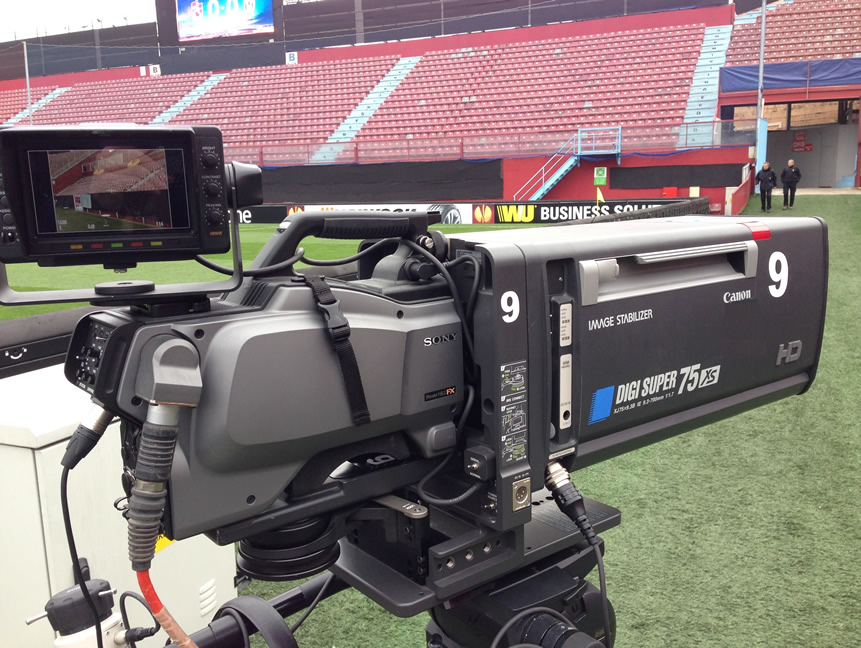

08 x Sony HXC-100 //U HD/SD Camera
04 x Sony HSC-100RT HD/SD Camera
08 x Sony HXCU-100 Camera Control Unit
04 x Sony HSCU-300R Camera Control Unit
12 x Sony RCP-1500 Remote Control Panel
08 x Sony HDVF- C550W 5 inch LCD Color Viewfinder
04 x Sony HDVF-L750 LCD 7 inch LCD Color Viewfinder
06 x Sony HDVF- 200 CE 2- inch Eng Viewfinder
High Speed Kamera
Sony HDC-3300 ( Talep Üzerine )
Wireless Kamera
Gigawave HD RF Diversity kamera sistemi ( Talep Üzerine )
Vislink HD RF Diversity kamera sistemi ( Talep Üzerine )

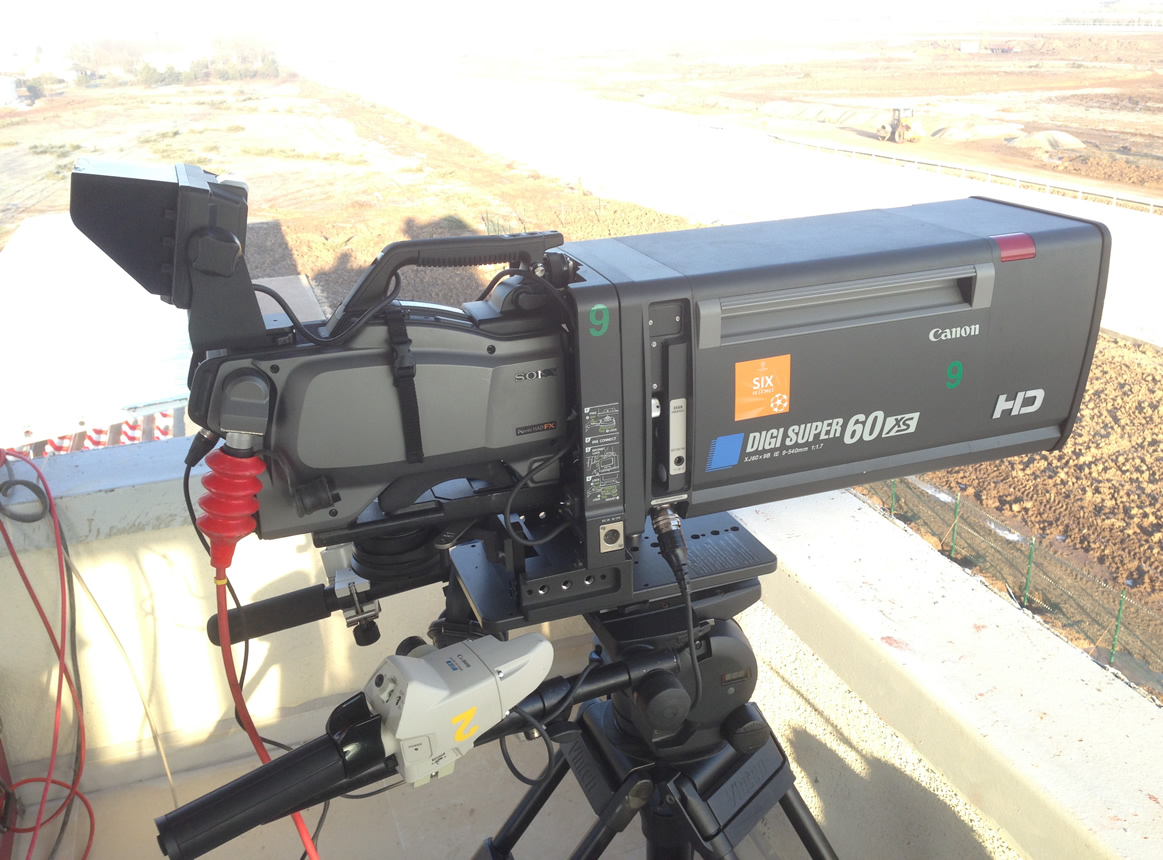

Lens
Canon HJ11x, HJ20x, HJ40x, XJ60, XJ72x , XJ75x
Video Router
Ross NK 3G 34x 34 3G/HD/SD-SDI Utility Routers
04 x Ross NK Series RCP-NKM XY Panel
Video Monitörleri
02 x JVC DT-E17L4G 17 İnch LCD Full HD Prog/ Prw. Monitör
03 x JVC DTV-1710 Crt 17 İnch HD Monitor
4 x 22 inç HD Quad Led Monitör with Multiviewer
01 x Black Magic Smart View Duo 8 inch HD Monitor
VTR

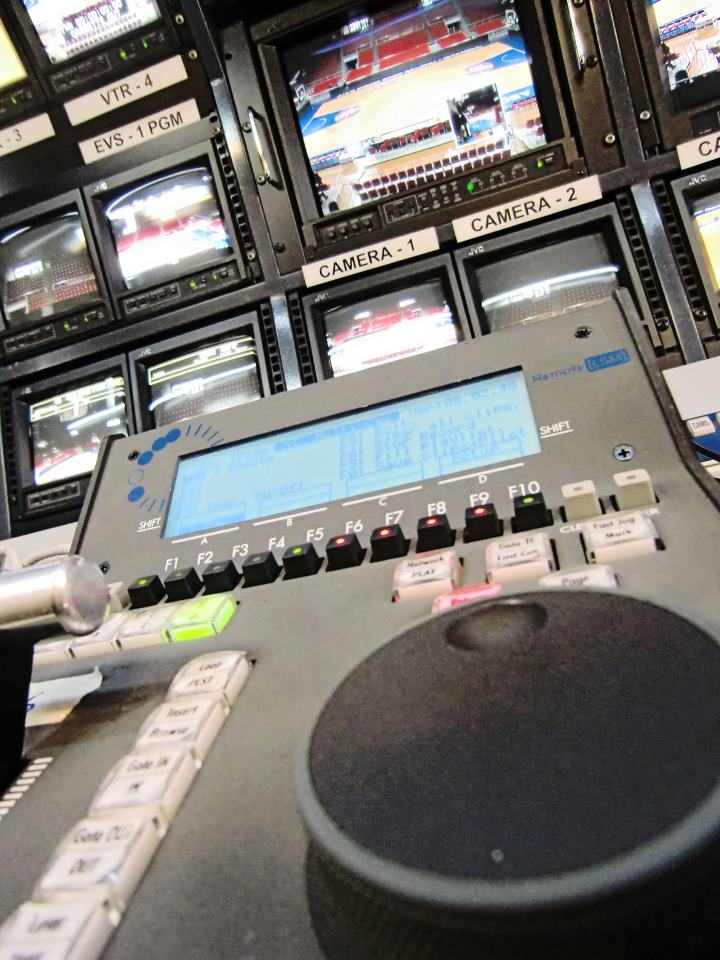

EVS XT Hard Disk Recorder
04 x AJA KiPRO HD/SD Hard Disk Recorder
11 x Convergent Design NanoFlash MXF. Codec Hard Disc Recorder
02 x Sony DVD Recorder
DİĞER
03 x Drake PD3190 24 buttons 2U LCD İntercom Panels
Aja FS2 TBC- Frame Store
Harris X75 TBC- Frame store
Snell Wilcox TBS-24 TBC-FS
Videotek VSG-201 D SPG
Tektronix 1741 A Waveform/ Vectorscobe
Tektronix 601E SD Waveform/ Vectorscobe
Ross HDC-8222A-R2 HD Downconverter
Ross MUX-8258-8C-R2C HD/SD Embedder
Ross DRA-8204-R2 Dual SDI Reclocking Amplifier
26 x Leitch A/ D Distributor ve D/A Monitoring Frame
02 x Sony DVD Recorder
02 x Genelec 8020 Audio Monitör

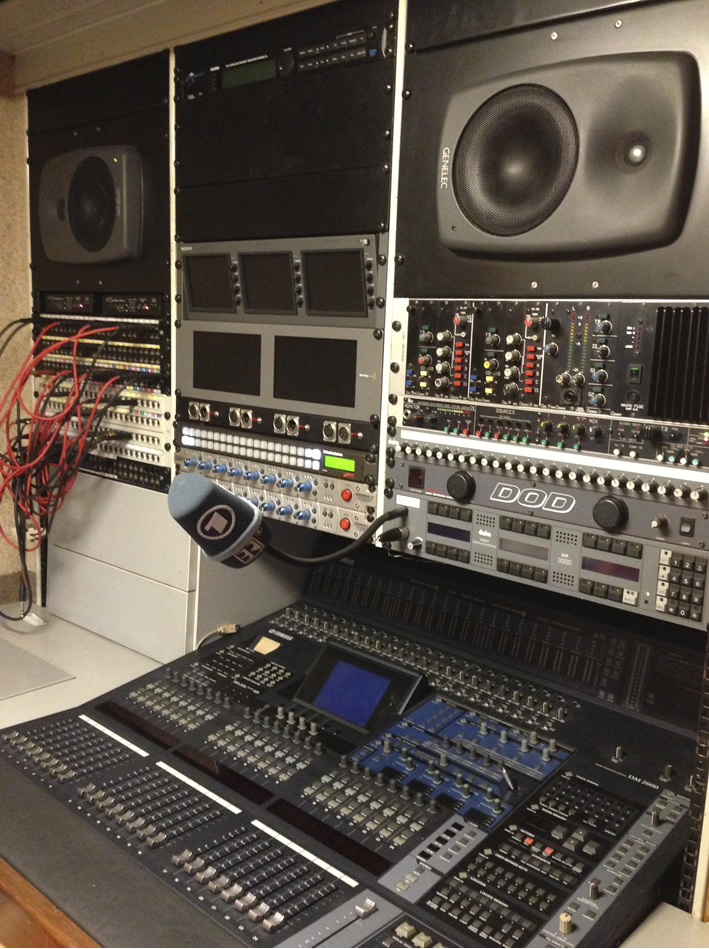

SES
Ses Mikseri
Yamaha DM2000 V2 Digital Mixer
48 Mic / Line İnput
8 Bus, 12 Aux, 4 Matrix
Digital Effect Processor
Effects and Dynamics ( Compressor, Expander, Gate, Delay,etc.) on all 48 ch with in the mixer
02 x Presonus Digital LT- 8 Ch Preamp
Ses Ve Video Monitörleri
02 x Genelec 8040 Audio Monitör
01 x Fostex 6301 B
01 x Black Magic Smart View Duo 8 inch HD Monitor
01 x Black Magic SmartView HD 17inch Full HD Monitor
Mikrofonlar
Sony, Akg Shootgun Effect Mic.
2 x Sennheiser EW135 Telsiz El Mikrofonları
Sennheiser EW100 Wireless Directional Microphone
02 x Sennheiser EK300-IEM G2 Kulak İçi Monitor
Sennheiser EW300-IEM G2 Transmitter
05 x Dynamik Mikrofon
02 x Denon Cd player
Telephone Hybrid
02 x Telos Hybrid
İntercom
Clear- Com Matrix Plus 3 Digital Matrix Unit
08 x İntercom Panels
Clearcom HME-DX210 Wireless Intercom with 6 Beltpack
ASL BS-216 Party Line İntercom
05 x 2 WireTalkback İntercom

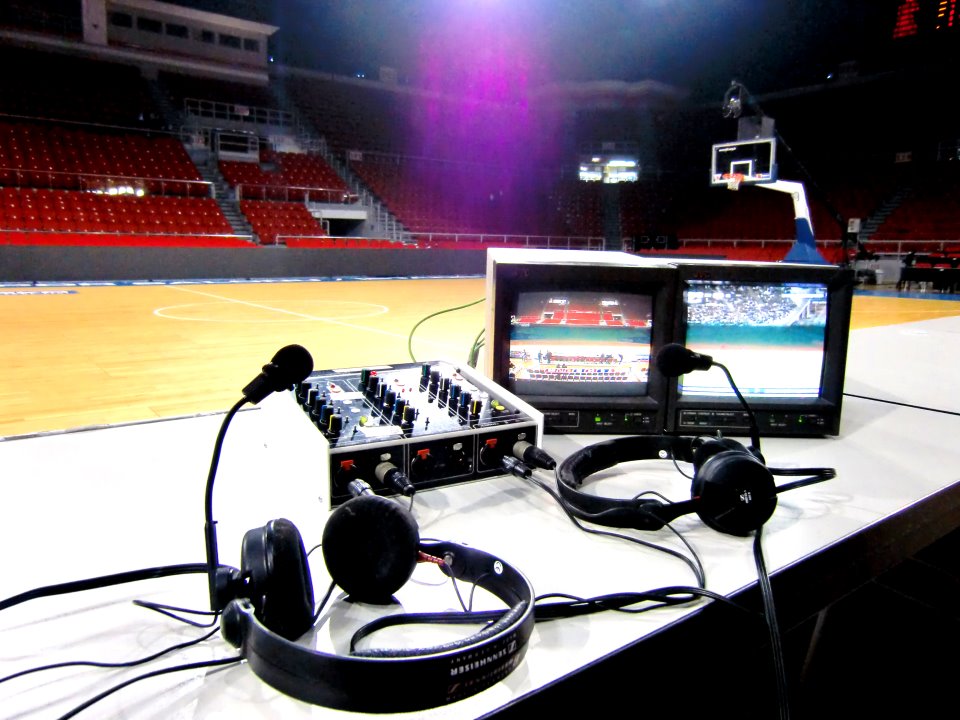

Commentary Box
Glensound GSOC 26 Base Unit
Glensound GSOC 24 Commentator Box
02 xSennheiser HMD-25 Heads
ISDN Codec
01 x Prodys Nomada IP XL ISDN Codec
